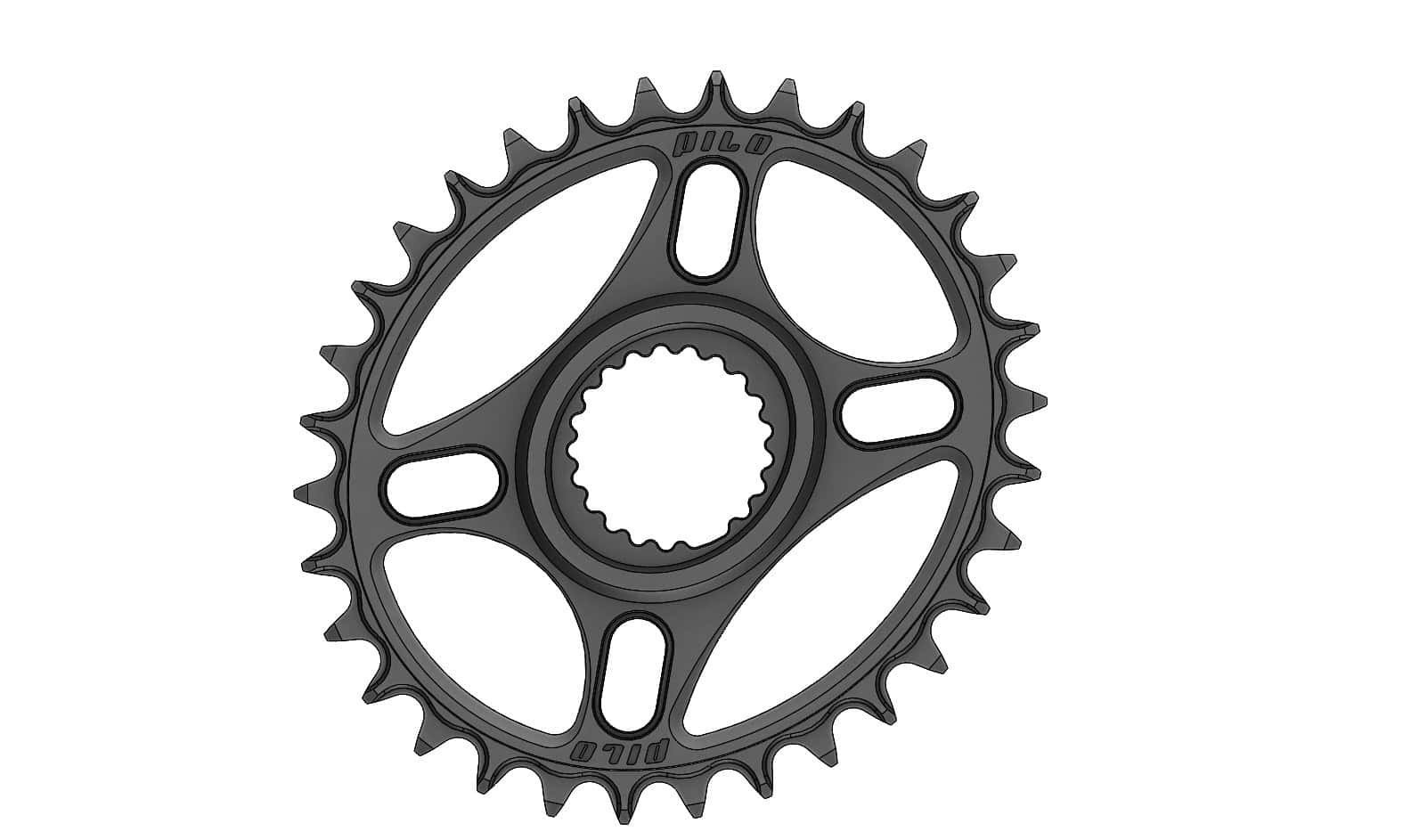

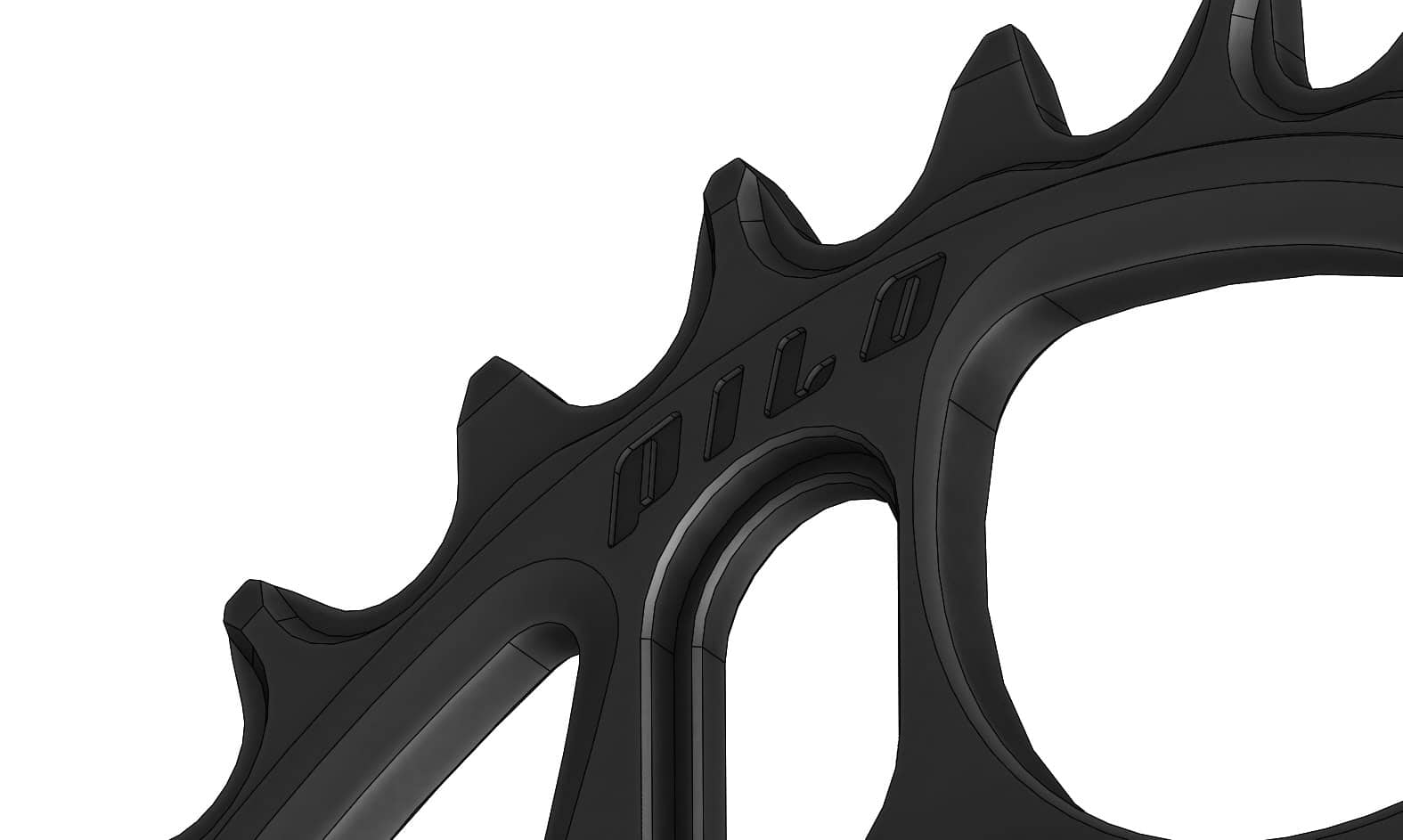

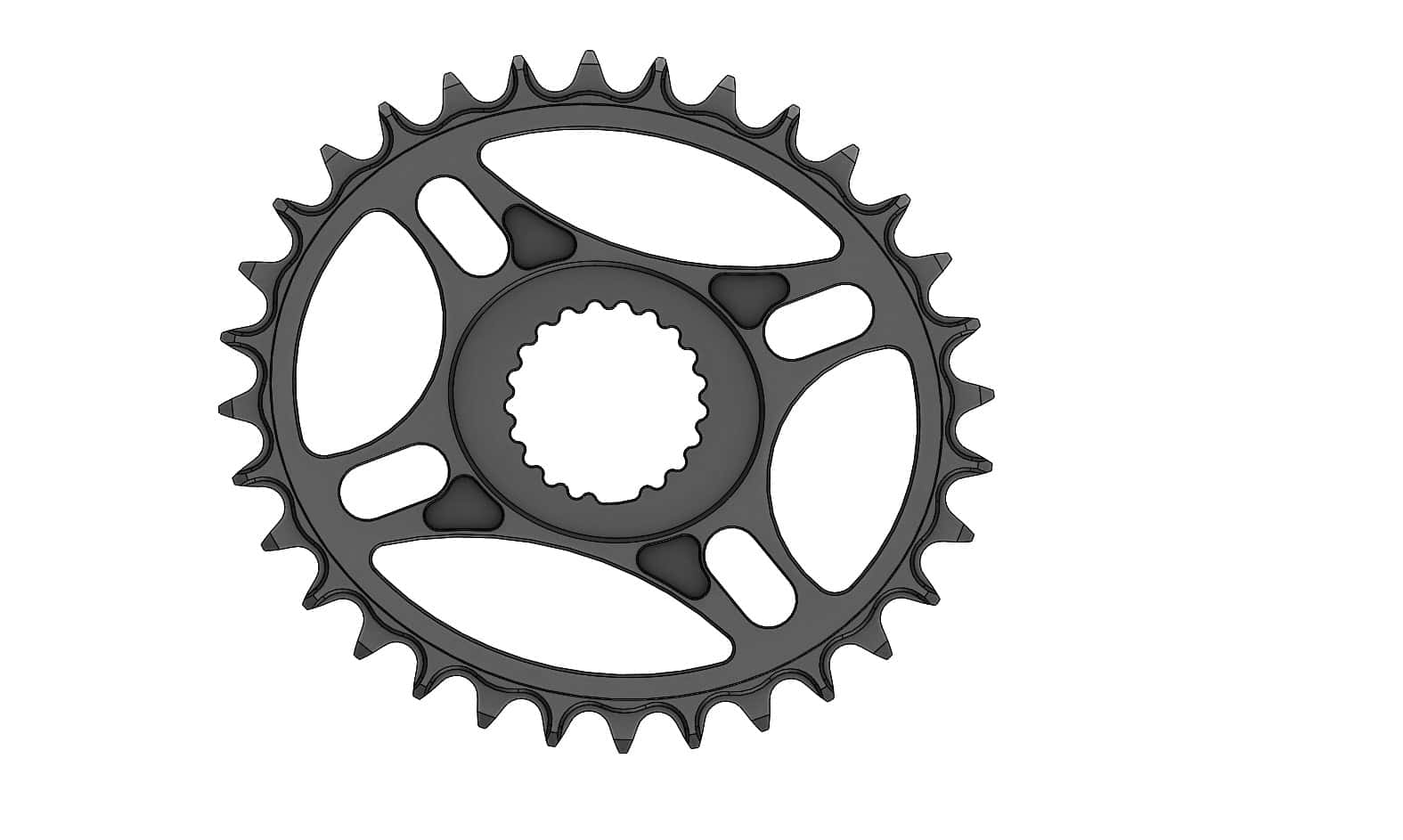

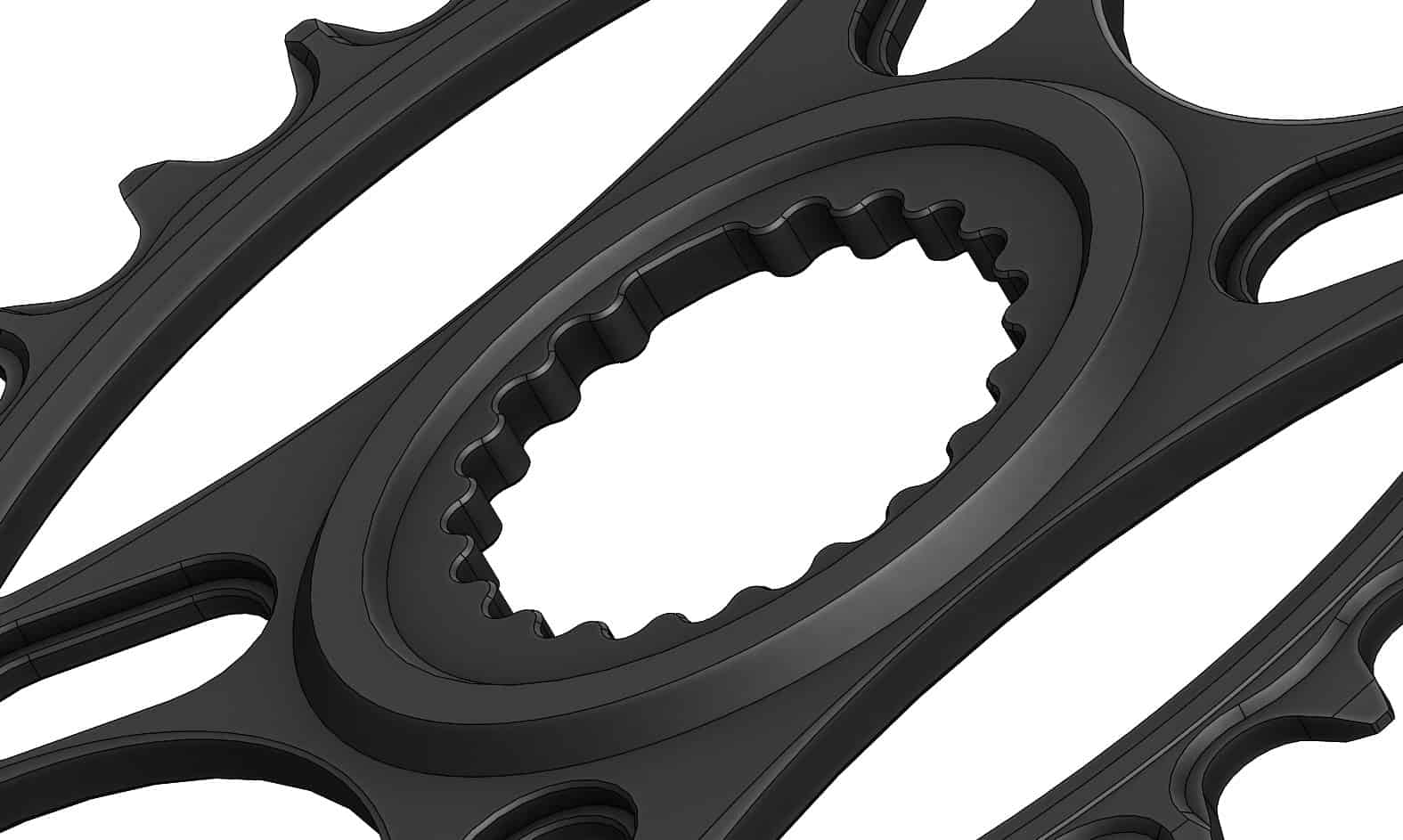

32T Narrow wide Elliptic Chainring for Shimano direct

C31 Description:
PILO Precise CNC Chainring milled from 7075 T7351 especially made aircraft grade Aluminium plate,
The material we are using is made by Constellium Switzerland.
Pilo tooth geometry is highly engineered, based on DIN8196 (ISO), tested and proved to be the best, we did not invent anything, we just did it right !
That's why our CNC chainring is durable, quiet in operation, and works exceptionally well.

Compatible with:

Shimano Direct Cranks.

Crankset compatibility:

Shimano :

M9100 XTR, M91200 XTR , M9125 XTR, M9130 XTR, M8100 XT, M8120 XT, M8130 XT, M7100 SLX, M7120 SLX, M7130 SLX, M6100 DEORE, M61200 DEORE, M6130 DEORE

Chain Compatibility:

all 10, 11speed chains.
12 speed KMC and Shimano chains including Hyperglide.

Not compatible with:

Sram Chains.
Sram T-Type chains.

Additional specs:
Pilo 32T elliptic profile tec specification:
lower gear equivalent to circular 30T chainring.
upper gear equivalent to circular 34T chainring.
Eccentricity: 12.5%.
Positioning relative to the crank's arm: 112 degrees counterclockwise.
Weight: only 66 grams.
Chainline: this Standard is controlled by the crank, all cranks use the same chainrings.
E-bike proved.
Finish: Hard Black Anodized.
